Welcome to blogisode # 3 in the ‘Why in Tarnation is My Wi-Fi So Slow’ series! I have to admit, this is the blogisode I was most excited AND nervous to write. Excited because I aim to provide a picture of the main impediments that impact Wi-Fi throughput that will also hopefully give you an overall better understanding of Wi-Fi technology. Nervous because it is a lot of technical information that is pretty difficult to present in an understandable and concise way… Hopefully, this will be a valuable resource for you and provide you with more insight into the world of Wi-Fi.

Without further ado, here are the top 10 reasons why your Wi-Fi has low throughput (in no particular order) with tips on how to diagnose and fix encountered issues:

10. You are using a Half Duplex technology

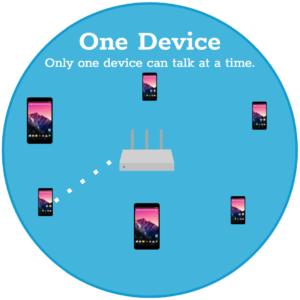

Half a what now? Duplex. Just half of it. Well… something like that anyways. Half Duplex is a fancy way of saying that, in Wi-Fi, only one device can talk at a time while all other devices listen. This includes all wireless access points (AP – AKA wireless router, gateway, radio) and client devices (iPhone, XBOX, Amazon Echo, SONOS speakers, laptops, TVs, and other devices that connect to the wireless access point) that are on the same Wi-Fi channel and within listening range of each other.

Think of it as a polite dinner table conversation with you and a group of your friends and family. A polite conversation will consist of one person talking while everyone else is listening. Once that person is finished talking, then someone else will pick up the conversation while everyone else listens. And around and around the table it goes – one person at a time. Like humans, Wi-Fi depends on invisible waves of frequency moving from a transmitting source (mouth / device transmitter) to a receiver (ears / device receiver). The more talkers, the more difficult it is to listen. To avoid overlapping communication, all Wi-Fi enabled devices operating on the same Wi-Fi channel and within listening range are programmed to talk one at a time. Naturally, if only one device can talk at a time, then throughput will be impacted.

Hard wired lines, on the other hand, allow for simultaneous bidirectional communication and though there are factors as to why hard-lined throughput can suffer, internet speeds will always downgrade at the end of the tunnel when Wi-Fi is involved.

The Fix: None. This is just how Wi-Fi works. But, have no fear! We have seen the impacts of half duplex lessen as Wi-Fi technology advances.

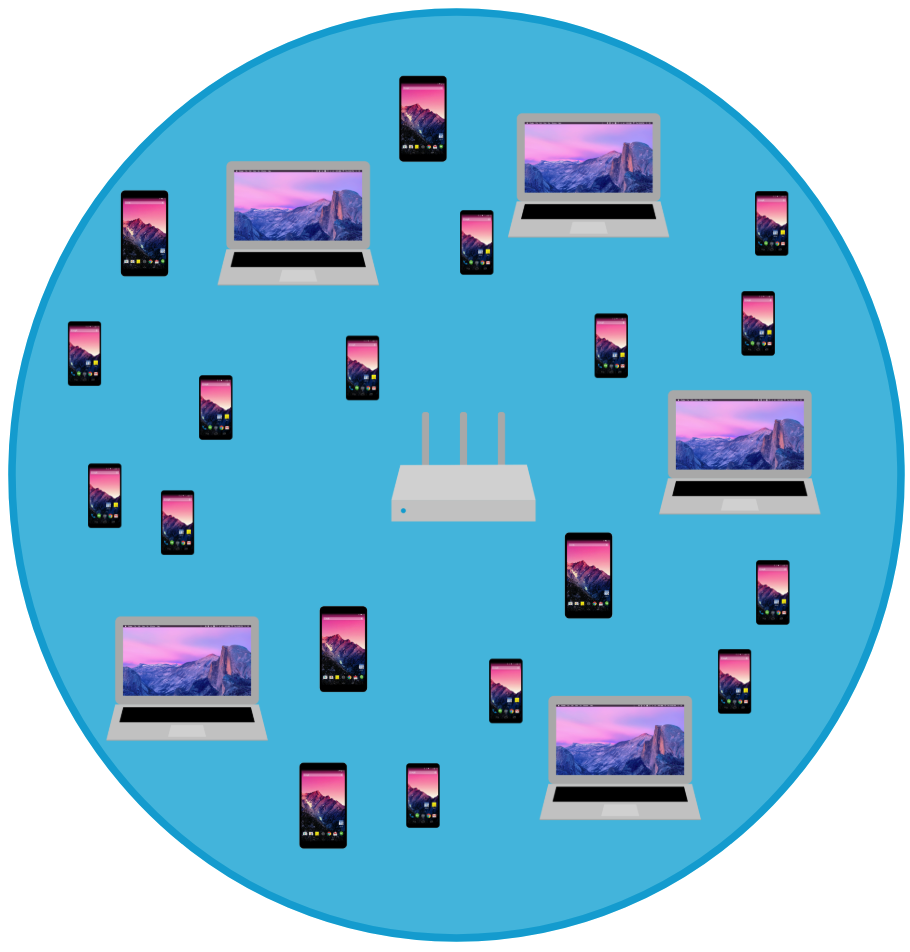

9. There are too many client devices associated to the AP or on the same channel

Going back to the dinner table conversation, let’s say that you really, really, really, want to say something. However, someone is already talking and they are talking about someone else who will then likely provide their response. What you are feeling is the contention nature of a half duplex conversation. You will need to contend for airtime to speak with everyone else at the table. Sounds frustrating? Oh, yea. If the table consists of you and 3 other people, then you will have a relatively easy time contending for speaking time. However, if you are sharing a table with 10, 15, or 20 or more people, then the longer you will have to wait until it is your turn to speak (likely why I prefer to eat alone…). This then becomes an issue of capacity. With Wi-Fi, the more client devices that are associated to an access point, the more clients utilizing the same channel, and the more clients actively contending for time, then the longer it will take for your turn to speak – hence, lower throughput.

The Tools:

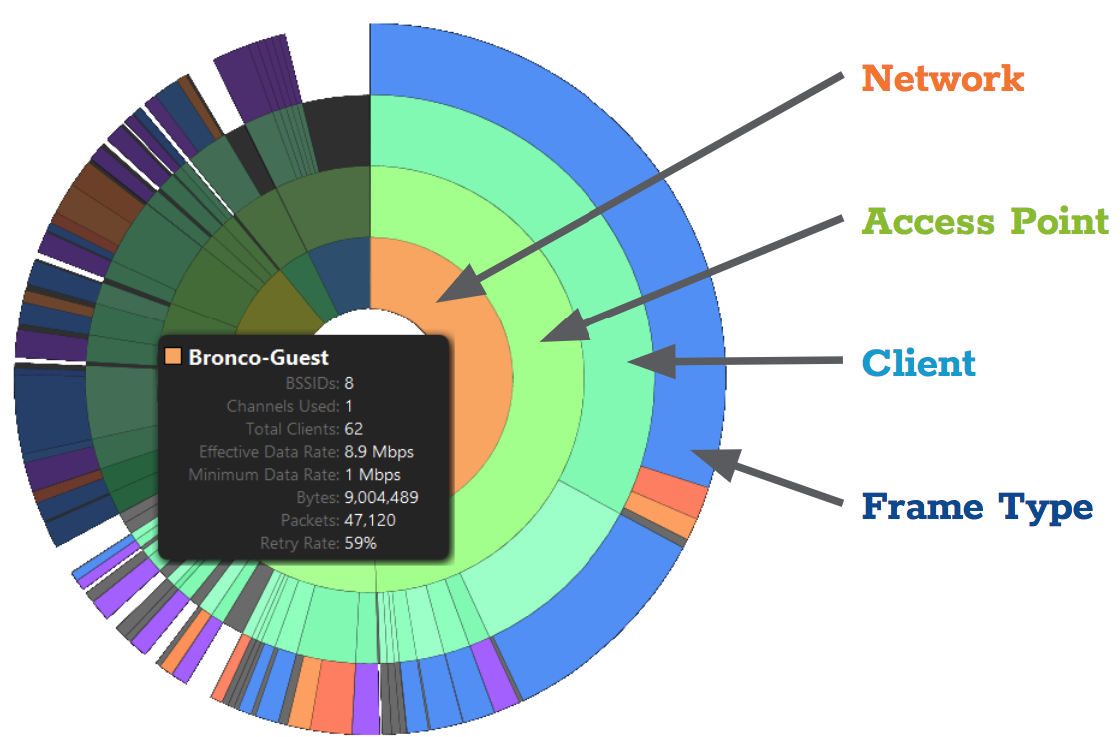

• Use Eye P.A. to see how many APs and devices are utilizing a channel and what the AP to client relationship looks like
• Use inSSIDer or Air Viewer to locate the channels with the fewest Wi-Fi networks

The Fix:

• Minimize the number of client devices associated to the AP
• Add another AP (utilizing a different channel) if unable to minimize client devices
• Update the AP to broadcast on the channel with the fewest Wi-Fi networks

8. You picked a bad spot to place your Access Point and have low signal strength

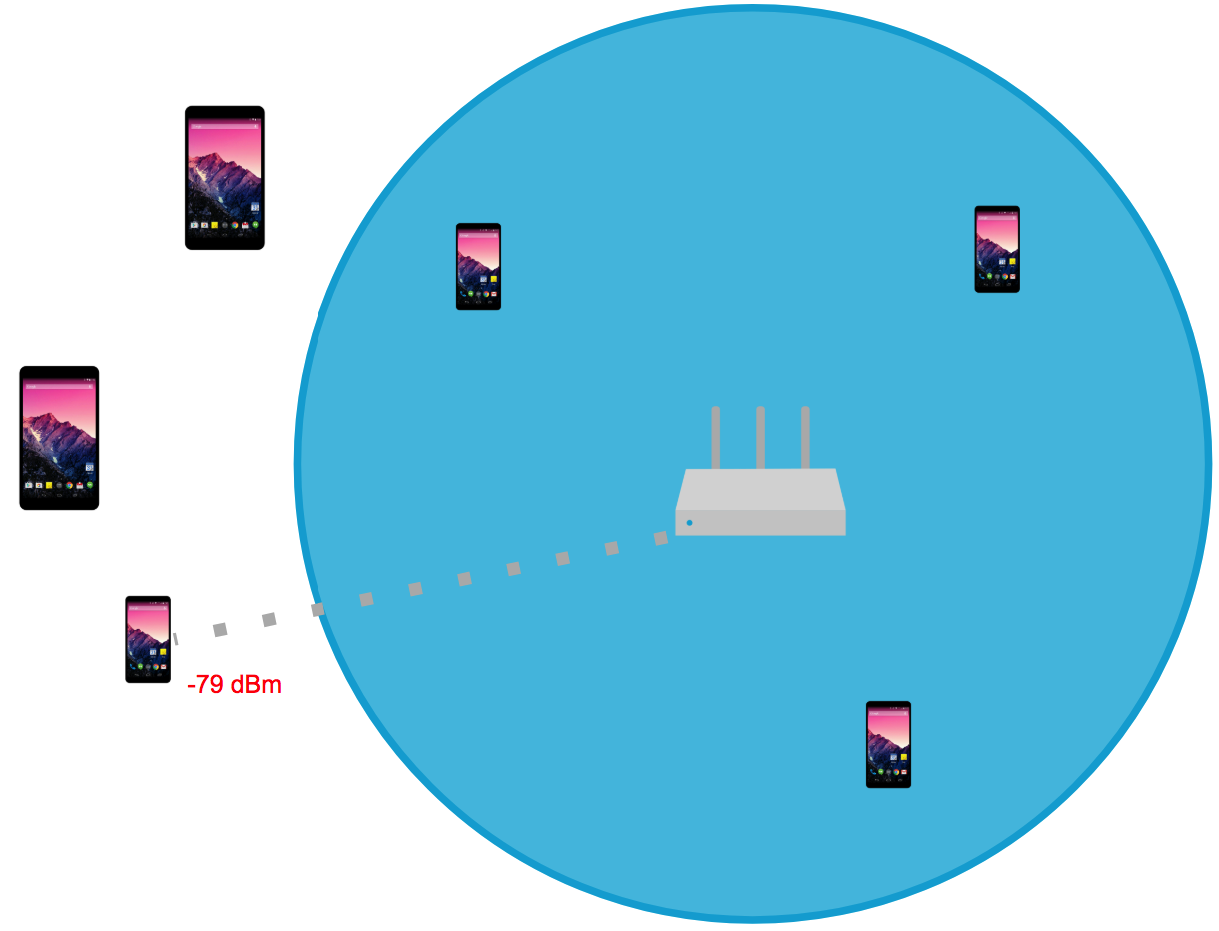

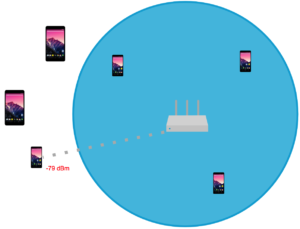

APs and clients must be able to hear each other well enough to understand what the other is saying in order to have effective communication. The further away a connected device is from their associated AP and the more physical barriers between them, such as the walls in your home, the weaker the received signal will be and the more throughput will be impacted. Signal strength is measured in units of negative decibel-milliwatts (dBm), which indicates the received power level of a transmitting device at the point of the receiving device. It is a way of describing how well you can hear someone after factoring in distance and physical barriers. The closer someone is to you and the fewer the barriers, the more likely you will be able to hear them and make out what they are saying.

With signal strength, your throughput will likely suffer when the reading is under -67 dBm. We recommend signal strength to be above -65 dBm for most internet usage. The ‘loudest’ signal strengths, achieved when the AP and clients are physically right next to each other, will see a signal strength around -30 dBm. One last little factoid, for every -3 dBm decrease in signal strength, that equates to losing half of the signal strength. Half! It’s logarithmic.

The Tools:

• Use inSSIDer or Air Viewer to measure your AP’s signal strength at the locations where you use Wi-Fi the most

The Fix:

• Move the AP closest to where you use Wi-Fi the most
• If you have stationary devices (XBOX, TV, Desktops) and are able to plug in the ethernet line, plug in the ethernet line
• If you still are experiencing poor coverage in the areas you use Wi-Fi the most, consider adding an additional AP or a Wi-Fi extender

The Additional Resources:

• Understanding Wi-Fi Signal Strength

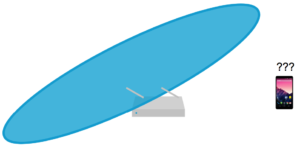

7. The AP antennas are not positioned correctly

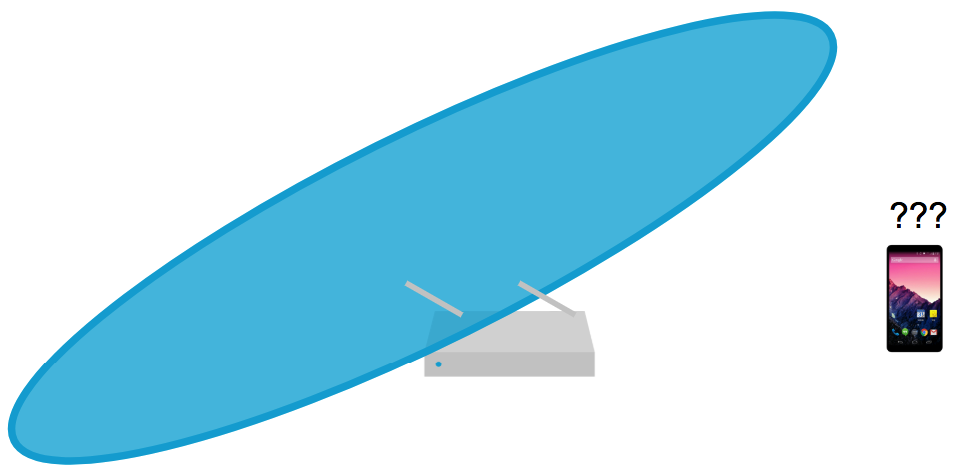

Antennas broadcast Wi-Fi signals and there are many different types of antennas. Some antennas are external, some are internal, some spread a signal in all directions, and some spread a signal in a concentrated direction. Some APs are made to sit on top of a horizontal surface, some are made to be on the side of the wall, and some are made to hang from the ceiling. The antennas are designed to spread Wi-Fi signals in certain directions and in certain patterns, so it is important that you place the AP as intended by the AP manufacturer. Also, if your AP has external antennas that are adjustable, make sure they are adjusted appropriately per the user manual, otherwise you may be dooming your Wi-Fi unintentionally.

The Tools:

• Use inSSIDer or Air Viewer to see if you are getting signal strength where you expect to have a strong signal strength
• The AP’s user manual

The Fix:

• Refer to the AP user manual to ensure that you setup the AP and external antennas (when applicable) appropriately

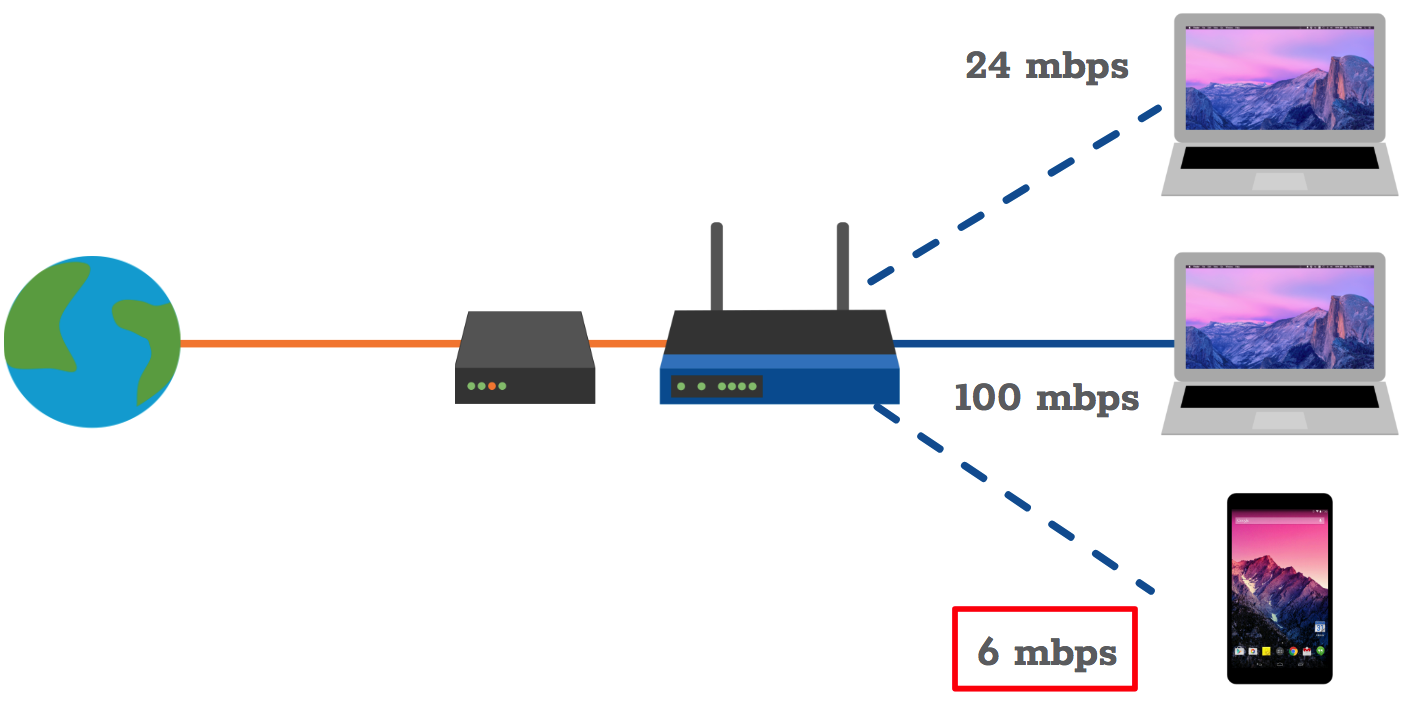

6. You have legacy device issues

802.11 describes a suite of standards for wireless local area networks that is governed by the Institute of Electrical and Electronics Engineers (IEEE) – view http://www.ieee802.org/11/ for more information. Essentially, think of 802.11 as ‘Wi-Fi’ and 802.11a/b/g/n/ac as the main Wi-Fi iterations of standards for Wi-Fi chipsets that are in the Wi-Fi devices that we use. The 802.11ax standard is up-in-coming; but, will not be referenced in this blogisode. Depending on which standard the chipset in your AP follows and the chipset in your client device follows, you may not be getting the full throughput potential that you could be getting. If you have a device on your network using an older standard, then you will experience lower throughput not only with that device, but with all other devices associated to the same AP.

In general, if your devices use 802.11a/b/g standards, then expect throughput over Wi-Fi to be cut in half or even by more than half. If your devices use 802.11n/ac, then expect throughput to go down by roughly 30%.

Here is a quick reference for the max potential data rates for each Wi-Fi standard mentioned above:

• 802.11 (2.4GHz, released 1997): 2 Mbps
• 802.11b (2.4GHz, released 1999): 11 Mbps
• 802.11a (5 GHz, released 1999): 54 Mbps
• 802.11g (2.4GHz, released 2003): 54 Mbps
• 802.11n (2.4 GHz / 5 GHz, released 2009): 600 Mbps
• 802.11ac (5 GHz, released 2013): 6.93 Gbps

Note that 802.11n and 802.11ac data rate potentials are quite high; 7 Gbps download sounds pretty awesome! Unfortunately, these rates are not yet achievable… But, one day…

The Tools:

• Use Eye P.A. to see what the effective data rates are for APs
• Use inSSIDer to see what 802.11 standards are supported by an AP and what the max data rate is

The Fix:

• If you do not have 802.11b devices on your Wi-Fi network, access your AP’s control panel and disable lower data rates
• Consider investing in newer APs and client devices that are 802.11n/ac enabled

5. You are relying too much on 2.4 GHz and not enough on 5 GHz

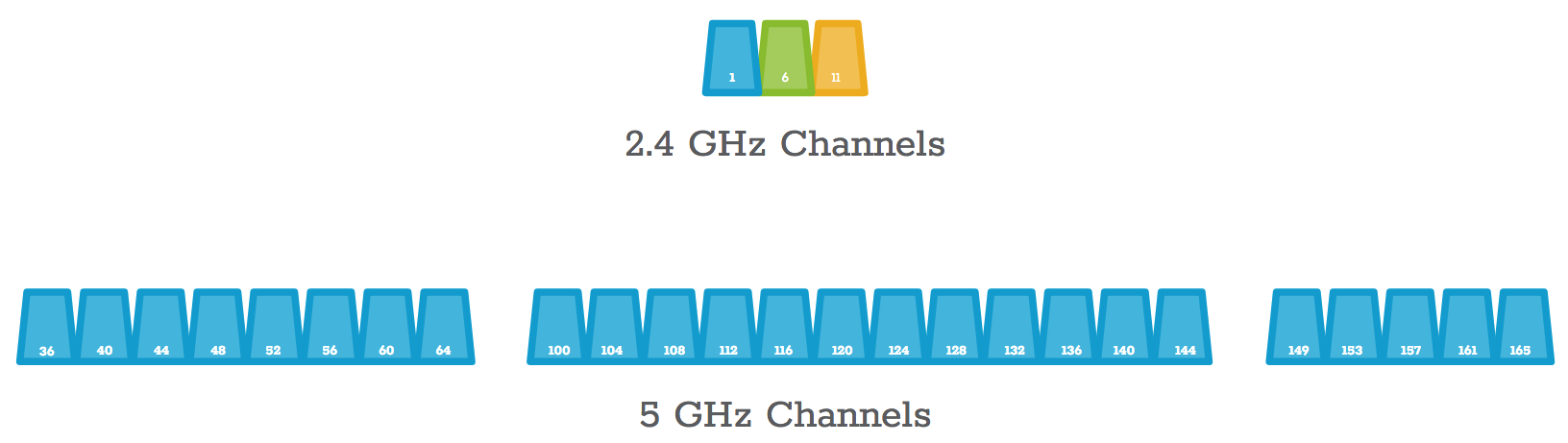

Data streaming over 2.4 GHz band has slower data transfer potential than data streaming over 5 GHz band. 5 GHz is the higher of the two frequency spectrums and has a shorter wavelength, which, without getting too technical, means 5 GHz can transmit data faster than 2.4 GHz. 5 GHz also has more usable Wi-Fi channels: 25 channels in the 5 GHz band vs the 3 channels recommended in the 2.4 GHz band (1, 6, and 11). Why are channels important? Well, a lot of cheaper devices and many IoT devices only utilize the 2.4GHz band. Since there are only three suggested channels on the 2.4 GHz band, this means there are typically more devices using fewer channels which causes high channel utilization and other impediments such as co-channel interference (CCI) and adjacent channel interference. Dual-band devices that operate on 2.4 GHz and 5 GHz have more options to be on a channel with less interference and congestion, giving them greater potential to experience better throughput rates.

The Tools:

• Use inSSIDer or Air Viewer to view the 2.4 GHz and 5 GHz environments

The Fix:

• As much as possible, plan for using the 5 GHz band
• For 2.4 GHz band only devices, select the channel (1, 6, or 11) that has the least amount of networks

4. You are using the wrong channel and channel width

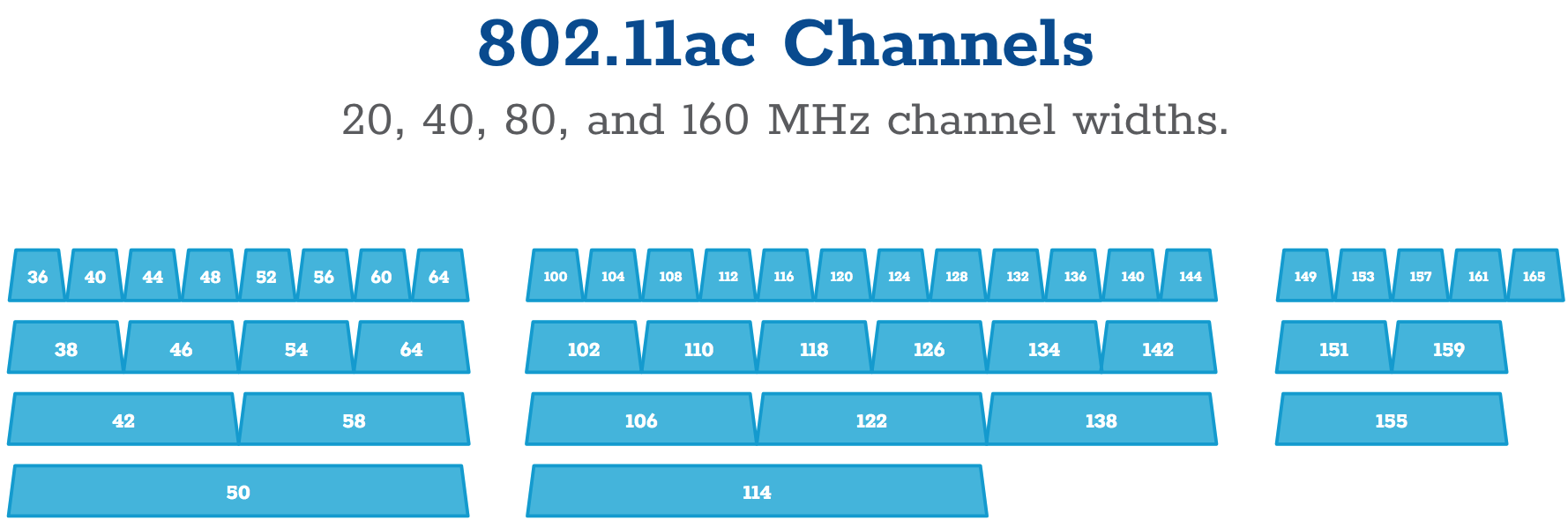

Traditional Wi-Fi channels are set to 20 MHz widths. 802.11n and 802.11ac introduced channel bonding which allows 2, 4, and 8 adjacent channels to be bonded with each other to allow for more data transfer capacity – increasing upload and download speeds. The 2.4 GHz spectrum can allow for 2 channel bonding to create a width of 40 MHz; however, due to the overlapping nature of the 5 MHz channel widths in the 2.4 GHz band, it is highly recommended not to use 40 MHz wide channels in the 2.4 GHz band due to higher congestion, overlapping, and co-channel interference issues that will be experienced in most Wi-Fi environments. So, be a good neighbor! The 5 GHz band allows for 40 MHz, 80 MHz, and 160 MHz wide channels with channel bonding; however, having channels more than 40 MHz wide is not recommended as it reduces channel planning capabilities and increases co-channel interference issues. Also, some channels are used by neighboring Wi-Fi networks more than others. Highly congested channels will impact your throughput performance.

The Tools:

• Use inSSIDer or Air Viewer to see how many other networks are using the same channel as well as what the channel widths are

The Fix:

• Ensure that 2.4 GHz networks are set to only 20 MHz channel widths
• For 5 GHz, if you can get away with using 80 / 160 MHz channel widths, then by all means do so; otherwise, stick to 20 / 40 MHz channel widths

The Additional Resources:

• 40 MHz Channels
• 802.11ac Channels
• Choosing a Wi-Fi channel

3. You purchased the wrong internet plan

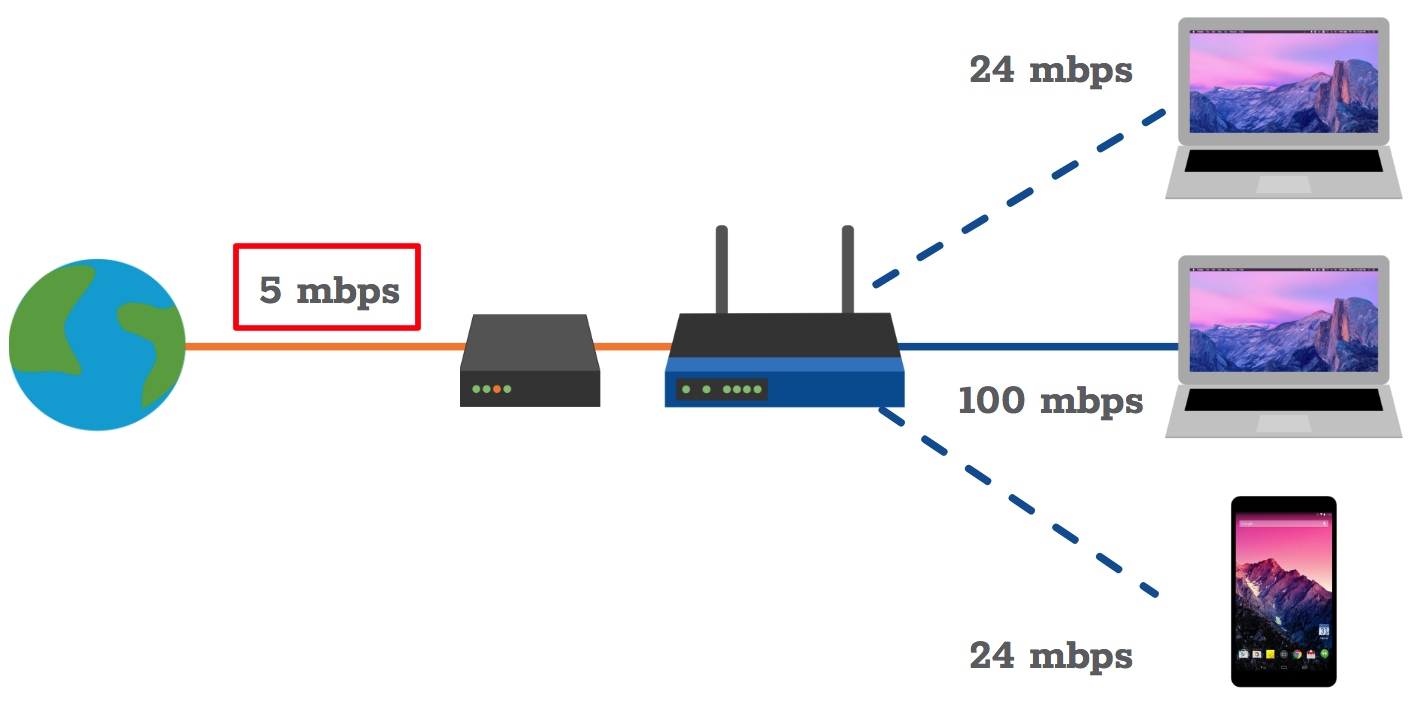

Did you purchase a plan that offers 5 Mbps download speeds and you have a family that loves streaming video at the same time on their own personal devices? Then, you may have purchased a plan that does not provide the download speeds that fit your needs…

The Tools:

• Use an internet speed test service to run a throughput test to see what your download and upload speeds are where you use Wi-Fi the most

The Fix:

• Check your internet plan and consider upgrading if you are not getting the max throughput speeds that will meet your needs

2. There is too much management overhead – the helicopter parent of Wi-Fi

Did you know that a wireless AP does more than just transmit and receive data from the internet and connected devices? If you didn’t know this before you do now since you just read it. Wi-Fi gurus say that up to 50% of Wi-Fi traffic can be made up of Wi-Fi management overhead alone. This management traffic consists of broadcasting network information to potential clients, handling client associations, authentications, etc. To make matters worse, the main offenders of management overhead are required to deliver information at legacy data rates so that they are backwards compatible with older devices.

The Tools:

• Use Eye P.A. to visualize the percentage of management frames vs data frames

The Fix:

• Set your network to a Wi-Fi channel with a minimum number of neighboring networks
• If you are using multiple virtual SSIDs (Wi-Fi network names) then reduce those to the bare minimum
• If you do not have 802.11b devices on your Wi-Fi network, access your AP’s control panel and disable lower data rates

The Additional Resources:

• Too many virtual SSIDs

1. There is too much interference from other Wi-Fi networks and from non-Wi-Fi interferers

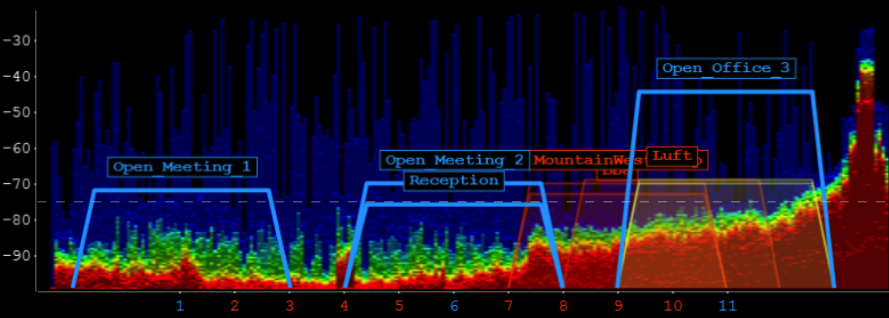

Much of this blogisode spoke of Wi-Fi interference of other Wi-Fi networks in the form of co-channel interference, when multiple Wi-Fi networks are broadcasting on the same channel, and adjacent channel interference, which is present on the 2.4 GHz band due to the smaller channel widths (2.4 GHz has 5 MHz wide channels and typical Wi-Fi frequencies broadcast 20 MHz wide signals whereas 5 GHz channels are 20 MHz wide, and therefore we typically say that 5 GHz does not have adjacent channel interference). Co-channel interference obviously can be an issue, but devices on the same channel at least can understand each other and act politely. On the other hand, adjacent channel interference is more of an issue because overlapping networks will not understand each other. It is like speaking English to someone who only knows Spanish.

Wi-Fi is not the only technology that uses the 2.4 GHz and 5 GHz bands. Non-Wi-Fi interference is not going to play ball with any Wi-Fi device; as it is not Wi-Fi. It would be like the fire alarm going off in a restaurant – it will impact all conversations in range and can bring down conversation altogether. Typical non-Wi-Fi interferers are microwave ovens, baby monitors, cordless telephones, ZigBee, Bluetooth, video cameras, wireless speakers, and poorly shielded cabling.

The Tools:

• Use Chanalyzer with the Wi-Spy DBx to visualize Wi-Fi and non-Wi-Fi interference
• Use inSSIDer or Air Viewer with Wi-Spy DBx to view channel utilization
• Use Device Finder 2.4 GHz Directional Antenna to locate sources of non-Wi-Fi interference

The Fix:

• If non-Wi-Fi interference is present, see if the interferer can be located and removed
• Select a Wi-Fi channel with the least amount of utilization and interference

The Additional Resources:

• Wi-Fi and Non-Wi-Fi Interference Examples
